Product Description
Paste: below 300℃
Welding: below 600℃
Ring: below 1000℃
Silicon Carbide: below 1300℃
The main component of SHC wear-resistant ceramic is92% Alumina & 95% Alumina Ceramic with excellent performance and good price and the most widely used material. A high density, diamond like hardness, fine grain structured and superior mechanical strength are the unique properties that make it the material of choice for a wide range of demanding applications. Because of insulating properties, it is often used in electronic products.

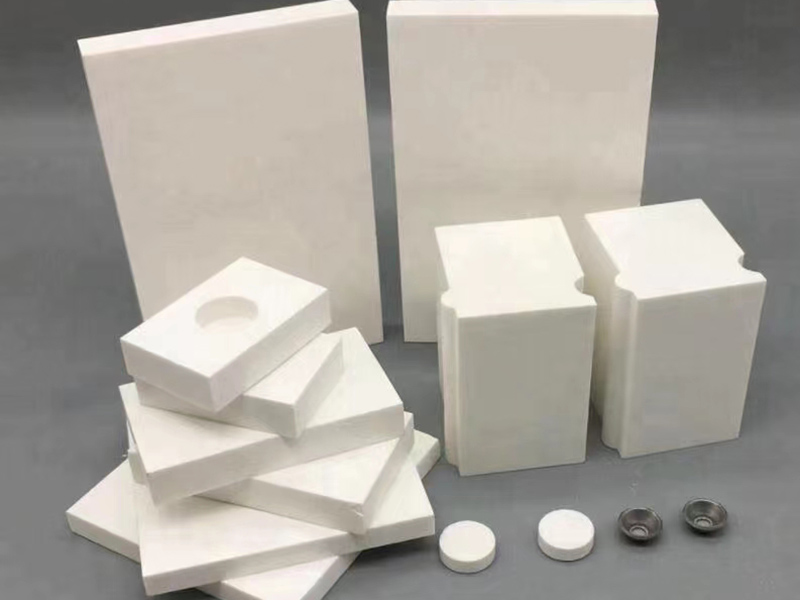

Ceramic tile technical specifications
Content of AL2O3: >92%
Density: 3.6g/cm3
Rockwell hardness: HRA 85
Rupturing toughness: 4 MPa.ml/2
Compression-resistant strength: >850 MPa
Bend-resistant: 300 MPa
Thermal conductivity: 24 W/m.K
Thermal expansion coefficient: 50-83 10-6 m/m.K
Product Advantage

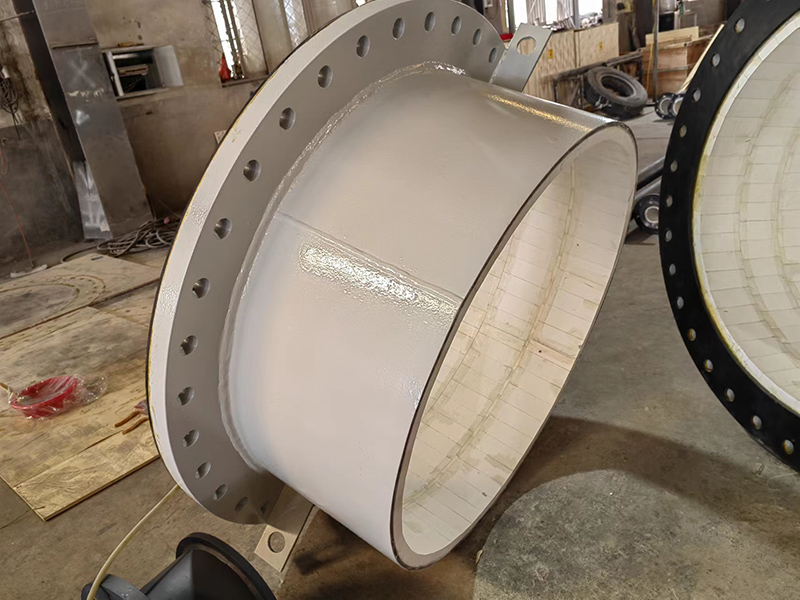

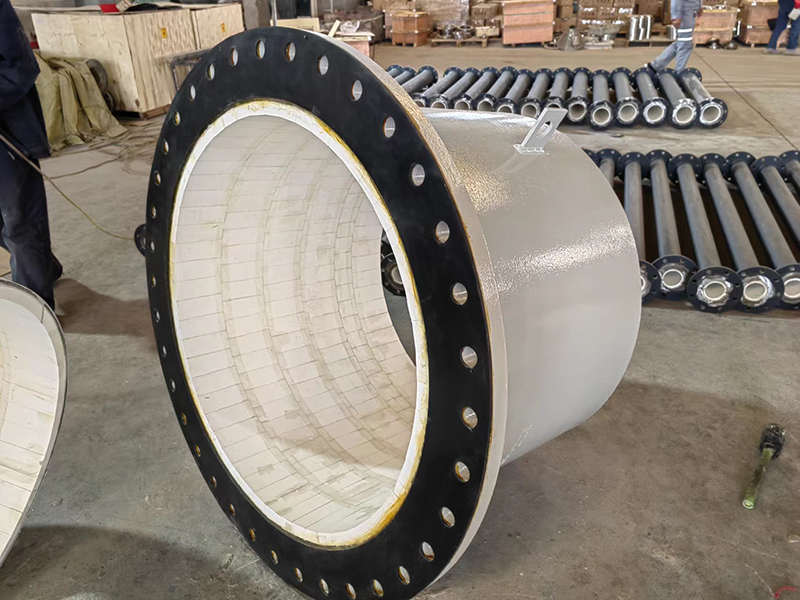

1. Excellent wear resistance: adopting high hardness alumina ceramics as liner, the lifetime of the pipe is above 10 times than normal hardened steel.
2. Corrosion resistance: alumina ceramic has advantages of seawater erosion, acid and alkali resistance, also scaling protection.
3. Friction promotion: Inner surface smooth and without erosion, the inner smoothness of pipes is superior to any other metal pipes.
4. Light weight: The weight of ceramic lined pipe compound pipe is just arriving at half of casting stone pipe and approximately 50% of alloy pipe. With a and corrosion resistance, the lifetime of ceramic lined pipe is outstandingly longer than other wear resistant pipes hereby the cost of assembly and running 5. Easily assembly: Due to its light weight and good weld ability, it can be assembled easily with welding or flange connection and remarkably reduce the
